› 7” non-glaring LCD, 1920×1200 resolution
› 3000nit super high bright
› HDR capable: PQ / HLG / S-log3
› 2K/3G/HD/SD-SDI input & loop output
› HDMI 2.0 (4K60p) input & loop output
› 16-ch embedded audio meters with alert
› Select any 2 audio channels to output
› 9 steps quick zoom-in and mapping
› Focus assist with precision adjustment
› Build-in multi-camera logs to Rec.709
› User 3DLUT cube file import by USB
› On-screen TALLY display and GPI
› Zebra stripes, False color, R/G/B/Mono
› H/V delay, AFD, Timecode display
› Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
› V/Gold mount or various DV plates option
› USB firmware upgrade
7-inch 3000nit Super Bright
PQ/HLG/S-log3 HDR capable
The CM-S73H adopts a 7-inch super high
bright LCD, the Max brightness is
3000nit, viewable under sunlight, and
support PQ, HLG, S-log3 HDR display.
The native resolution is Full HD 1920×1200, contrast 1200:1
Input/Output Interfaces
3G-SDI、4K-HDMI
CM-S73H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1 (loop SDI IN1 only)
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output
3DLUT Log to Rec709
User LUT cube import
CM-S73H monitor has built-in camera logs to Rec
709 conversion LUTs, including Log-C, C-log,
S-log2， S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by
USB stick, support 17x17x17 3DLUT cube files.
Embedded audio monitoring
Up to 16-ch meters with alert and select output
CM-S73H supports SDI-16ch and HDMI-2ch embedded audio
meters display, with marks and audio abnormal alert info.
Users can also select any 2 channels audio to output via 3.5mm
socket or speakers. The audio meter pattern position can be
selected from one of four corners, and you can select to display
only 2 channels, 8 channels, and full 16 channels. Also scale
markers, alert info, and translucent of the audio meter pattern
are selectable.
Peaking, R/G/B/Mono only, Zebra, False color
Timecode, H/V delay, AFD, Scale Markers
On-screen Tally
CM-S73H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.
Various DV Plate Install
V-mount / Gold mount / DV mount
CM-S73H supports DC 6.5-17V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power.
*Using S-7006F/D/B/I/C, the Max brightness will be reduced to 2000nit.
USB Firmware Upgrade
The monitor provides a standard USB port on the
rear panel, for firmware upgrade. Users can
download the latest firmware file to a USB stick,
and directly insert into CM-S73H monitor to
upgrade, without PC connection.
LCD Performance
Size | 7 inches |
Display area | 151.2×94.5mm |
Resolution | 1920×1200 |
Aspect ratio | 16:10 |
Brightness | Max 3000cd/m2 |
Contrast | 1200:1 |
Color | 16.77 million colors |
Viewing angle | Horizontal: 160°; Vertical: 120° |
Input
BNC ×2 | 2K/3G/HD/SD-SDI input |
HDMI-A ×1 | HDMI 2.0 input |
USB ×1 | Firmware upgrade |
RS485 ×1 | GPI (Tally) input |
Output
BNC ×1 | 2K/3G/HD/SD-SDI loop output |
HDMI-A ×1 | HDMI 2.0 loop output |
3.5mm ×1 | SDI, HDMI embedded audio output |
Video Format
SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (60 / 59.94 / 50） | |
| 1080p (60 / 59.94 / 50) | |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
HDMI | 4096×2160p (60 / 50 / 30 / 25 / 24) |
| 3840×2160p (60 / 50 / 30 / 25 / 24) | |
| 480i/ 576i / 480p / 576p | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
General
Input voltage | DC / battery 6.5V-17V |
Power consumption | ≤26W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 187×137×41mm |
Net weight (main body) | 500g |
Basic Package
MSRP
$8222
Professional Package
MSRP
$8222
MSRP
$8222
-
Cold shoe to 1/4" Ball head
-
S-7006 battery plate (S/A/U/F/D/B/V/I/C/E selection)
-
D-tap to lockable Pole-tap Cable
-
Sun hood
-
Carrying case
-
LCD Protector
-
HDMI A-A cable
-
BNC HD cable
-
AC-DC Adaptor
-
Cold shoe and 1/4" Arm Trestle
-
S-7006 battery plate (S/A/U/F/D/B/V/I/C/E selection)
-
D-tap to lockable Pole-tap cable
-
Sun hood
-
S-7006S
V-mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable. -

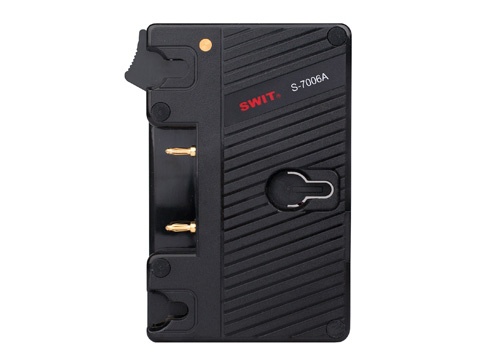

S-7006A
Gold mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006F
SONY NP-F970/770 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006U
SONY BP-U30/U60 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006D
Panasonic CGA-D54, VW-VBD58, AG-VBR59 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006B
Panasonic VW-VBG6 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006C
Canon BP945/970G DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006E
Canon DSLR LP-E6 Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006i
SSL-JVC50 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7006V
JVC BN-VF823 DV Battery Mount Plate, 4 screws installed onto the monitor, with 2-pin power connector to plug into the monitor internally, without external DC cable.
