› 7-inch IPS LCD, 1920×1200 FHD
› 3000nit super bright, sunlight visible
› PQ/HLG HDR monitoring
› 3G/HD-SDI input and loop out
› HDMI 1.4 (4K30p) input and loop out
› 2x 4x Quick zoom-in and Pan

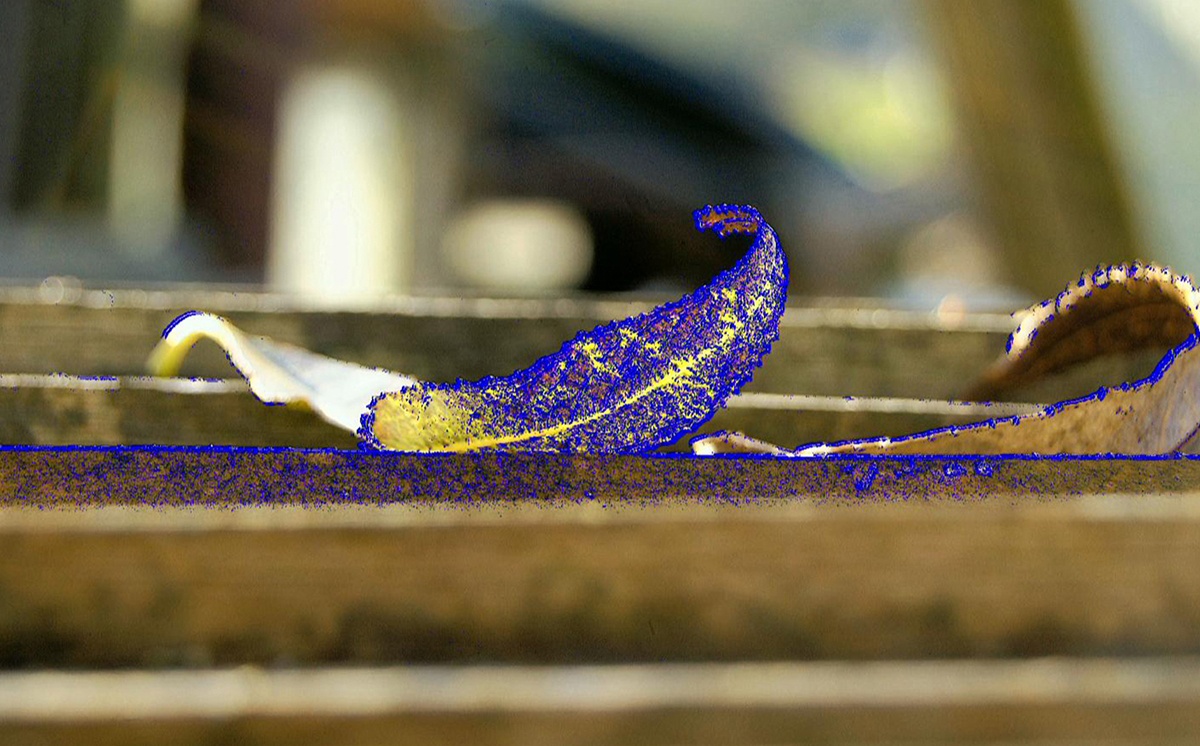

› Peaking focus assist and precision adjust

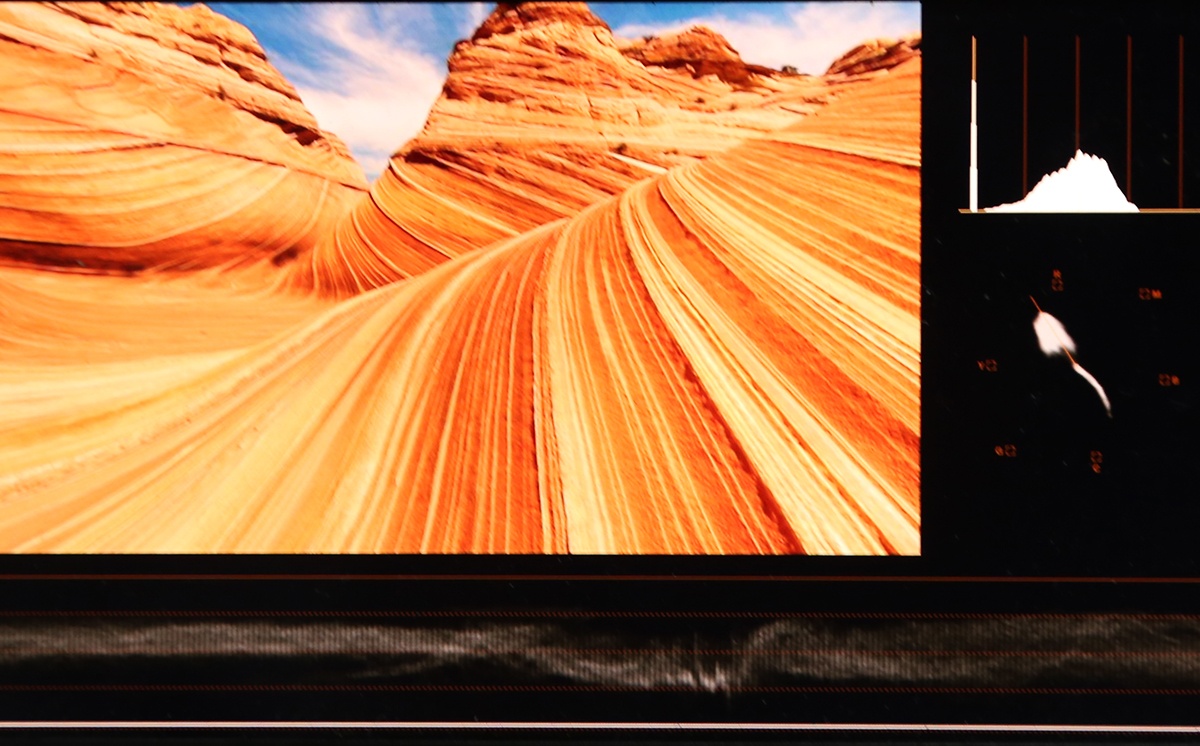

› Waveform / Vector / Histogram
› Build-in 30 kinds of De-log 3DLUTs
› User DIT 3DLUT import by SD card

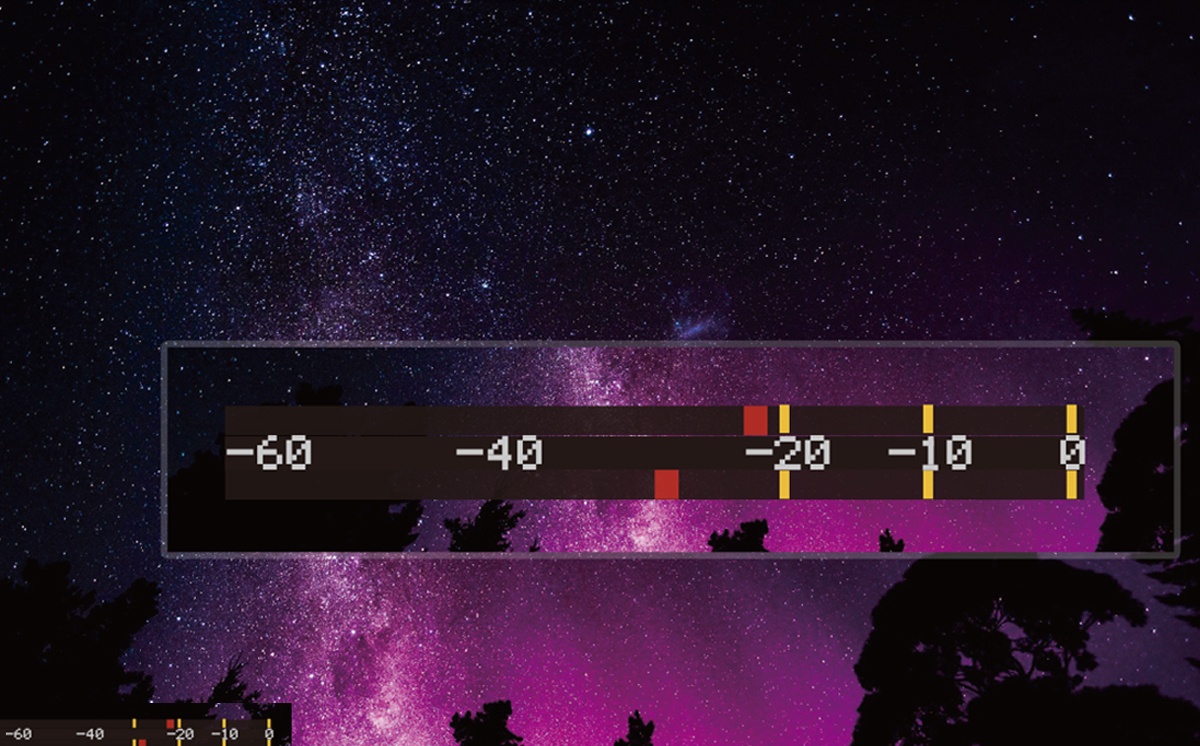

› 2-ch SDI/HDMI audio meters display

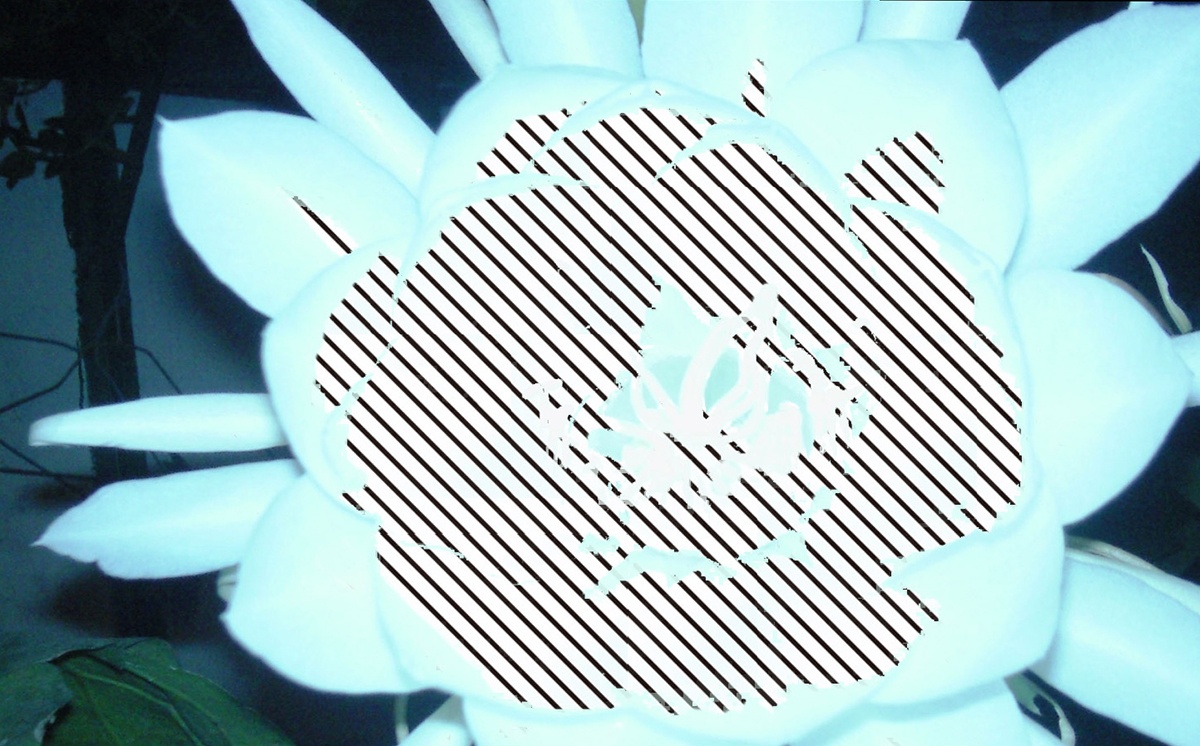

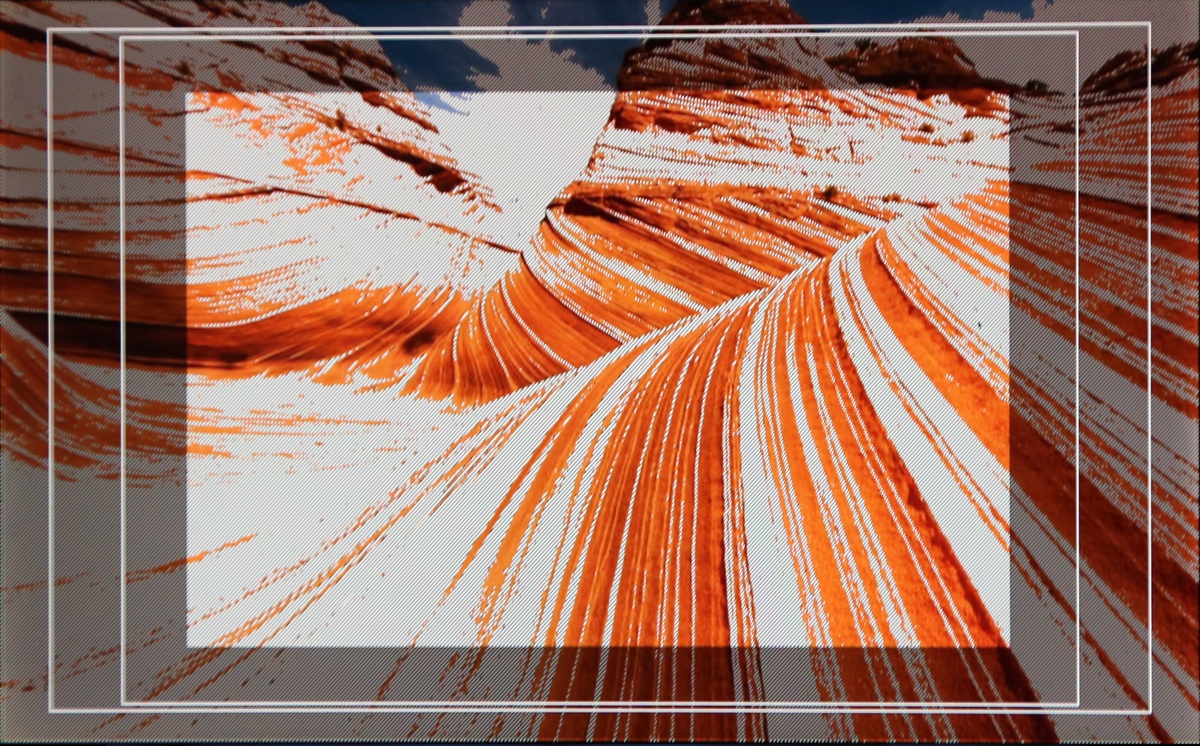

› Super False color, Zebra stripes, Anamorphic
› Built-in NP-F plate, V-mount for option

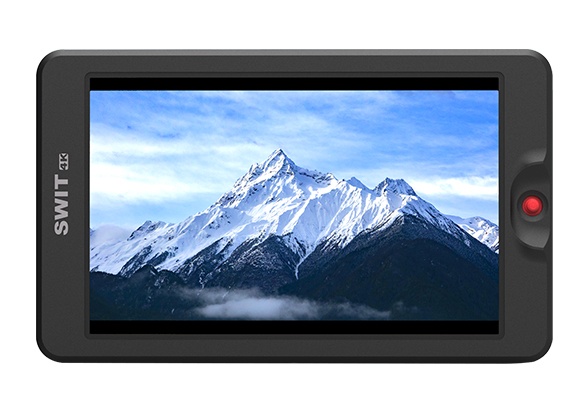

3000nit Super Bright
Sunlight visible, PQ/HLG HDR

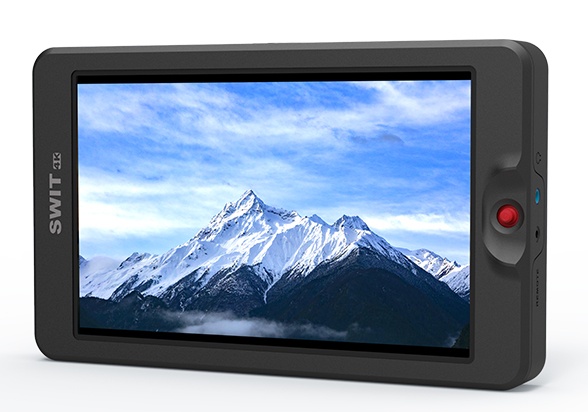

The CM-S75F adopts a 7-inch super
high bright LCD, the Max brightness is
3000nit, visible under sunlight, and
built-in PQ, HLG HDR.
The native resolution is Full HD
1920×1200, contrast 1200:1
Input/Output Interfaces
3G-SDI and 4K-HDMI
CM-S75F monitor supports:
3G/HD-SDI input × 1
3G/HD-SDI loop output × 1
HDMI 1.4 (4K30p) input × 1
HDMI 1.4 (4K30p) loop output × 1
3.5mm embedded audio output
SD card input for 3DLUT upload and Firmware upgrade
Single Joystick Operation
The monitor operation can be easily realized by only one Joystick:
Up: Quick Zoom-in mode
Down: Quick adjust backlight
Long Down: Delete current scene
Left/Right: Preset Scenes switching
Long Left: Enter Menu system
Long Right: Add a new scene
Press down: Edit tools shortcuts / Confirm settings
Scene Layout Edit and Switch
Different from the traditional multi-buttons monitors, the CM-S75F adopts the preset scenes and switching operations. You can add
up to 8 scenes, and add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily,
instead of complex menu buttons operations.
Built-in De-log 3DLUT
CM-S75F has built-in HLG, PQ3000,
PQ10000 HDR 3DLUTs and 30 kinds of
Rec709 De-log 3DLUT, Includes S-log2/3,
V-log, C-log1/2/3, Log-C, J-log1, RedLog,
BMD, FujiFilm, GoPro, DJI etc, to convert
log mode to REC709 for all major cameras.

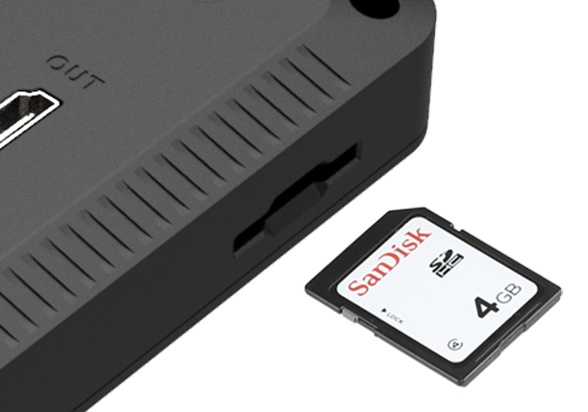

User 3DLUT upload
User 3DLUT cube or calibration 3DLUT cube can
be uploaded to the monitor by SD card. Support
17^3, 33^3 and 65^3 cubes. Max 16 user
3DLUTs can be restored.
Anamorphic
De-Squeeze
Enables de-squeeze the image from a
camera utilizing anamorphic lens,
Aspect Formats:
16x9,
4x3,
x1.3 Anamorphic De-Squeeze
x2.0 Anamorphic De-Squeeze
x2.0 MAG Anamorphic De-Squeeze
Quick Zoom-in and Pan
Scroll the joystick up, to zoom-in the image by 2x
or 4x; and during zoom-in mode, press the joystick,
you can easily pan the image up/down/left/right by
the joystick.
Video Tools
Super False Color Exposure Assist
Besides normal spectrum false color, the CM-S75F supports more powerful Super False Color mode,
including under-exposure / Over-exposure / 18 degree grey / Skin tone indications, to help you to get
a correct exposure easily.
The exposure indicators are calculated for different cameras. You can select the log curves from SONY 709/S-log2/3, Panasonic 709/V-log, BMD/4K, Canon C-log2/3, ARRI 709/Log-C, REDLogfilm, RED RG3/4/RL3G10.

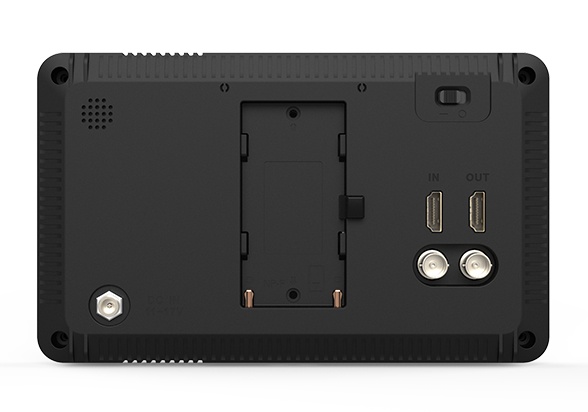

Power Input

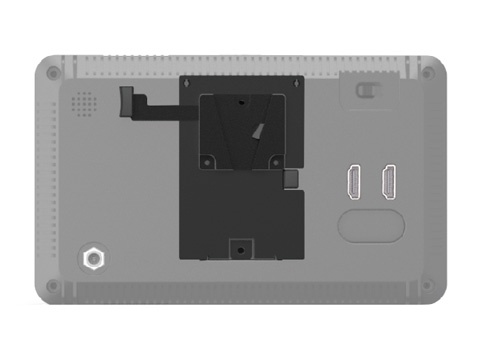

CM-S75F has a built-in NP-F DV battery slot, supports 11-17V DC-IN (5.5/2.1mm pole-tap), and provides an optional V-mount plate to install V-mount batteries.
The Max power consumption is 18.8W with full 3000nit backlight.
Reviewed by Matthew Allard
See CM-S75F/C newsshooter review, by Matthew Allard, the multi-award-winning ACS accredited freelance Director of Photography with 29 years' experience working.
Matthew has won 41 ACS Awards, including four prestigious Golden Tripods. In 2016 he won the Award for Best Cinematography at the 21st Asian Television Awards.
LCD Performance
Size | 7 inches |
Display area | 151.2×94.5mm |
Resolution | 1920×1200 |
Aspect ratio | 16:10 |
Brightness | 3000 nit |
Contrast | 1200:1 |
Color | 16.77 million colors |
Viewing angle | Horizontal: 160°; Vertical: 120° |
Input
BNC ×1 | 3G/HD-SDI input |
HDMI-A ×1 | HDMI 1.4 input |
SD card ×1 | 3DLUT upload and Firmware upgrade |
Output
BNC ×1 | 3G/HD-SDI loop output |
HDMI-A ×1 | HDMI 1.4 loop output |
3.5mm ×1 | SDI, HDMI embedded audio output |
Speaker | SDI, HDMI embedded audio output |
Video Format
SDI | 2048×1080p (60 / 59.94 / 50） |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1035i (60 / 59.94) | |
| 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI | 4096×2160p (30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480p / 576p |
General
Input voltage | 5.5/2.1mm Pole-tap DC 11-17V input; NP-F battery 6-8.4V input |
Power consumption | Max 18.8W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 192×116.3×24.7mm |
Net weight (main body) | 450g |
Basic Package
MSRP
$8222
Professional Package
MSRP
$8222
MSRP
$8222
-

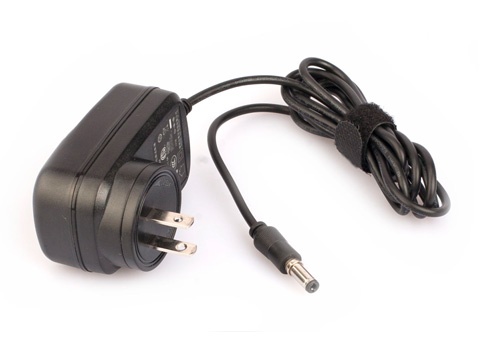

AC-DC Adaptor
-

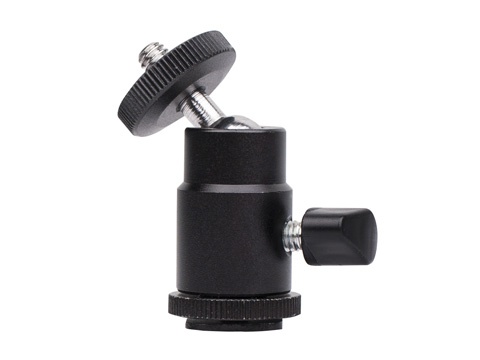

Cold shoe to 1/4" Ball head
-

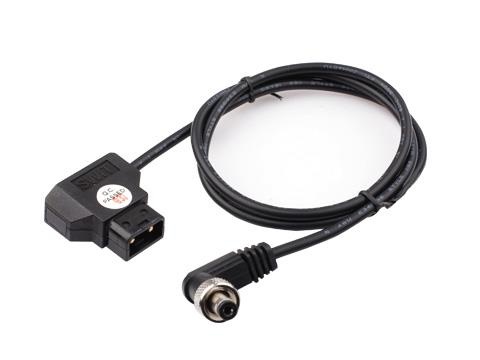

D-tap to lockable Pole-tap cable
-

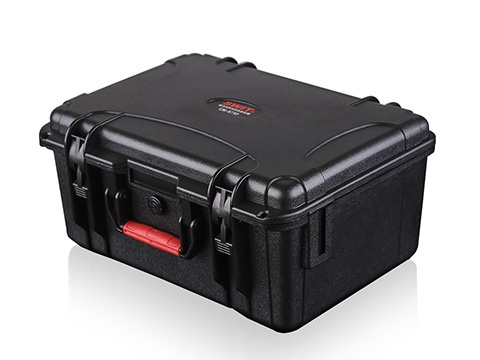

Carrying case
-
V-mount plate
-

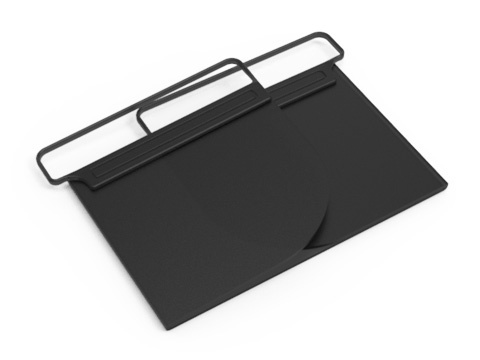

Sun hood
-
AC-DC Adaptor
-

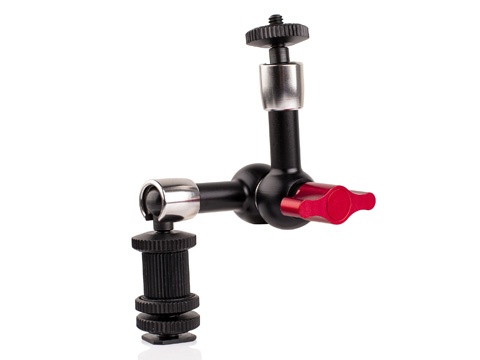

Cold shoe and 1/4" Arm Trestle
-
D-tap to lockable Pole-tap cable
